Structure of some simple molecules

CH4
methane
Methane 		NH3
Ammonia
Ammonia 		H2O
Water
Water
H3CCH3
Ethane
Ethane 		H2CCH2

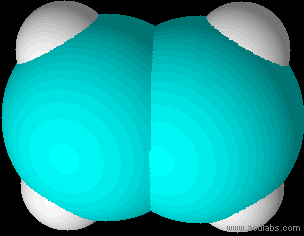

Ethene
Ethene 		HCCH

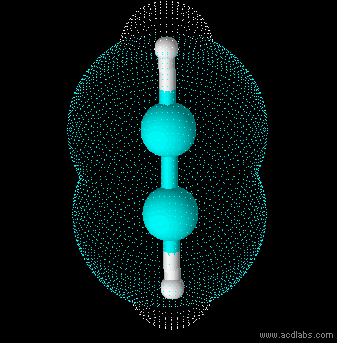

Ethyne
Ethyne
cis- ClHCCHCl

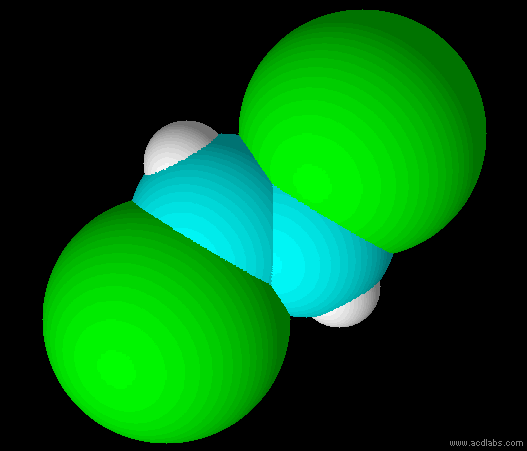

cis-dichloroethene
cis-dichloroethene 		trans- ClHCCHCl
trans-dichloroethene
trans-dichloroethene 		CHClFBr stereos

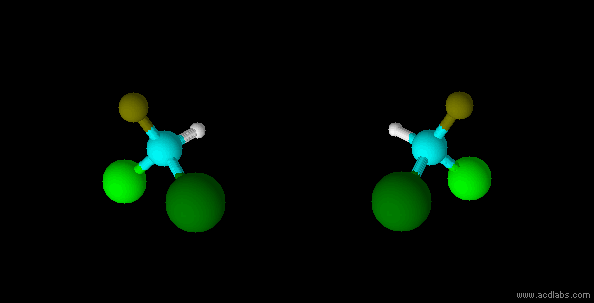

CHClFBr stereos
stereo isomers
SF6
sulfur hexafluoride

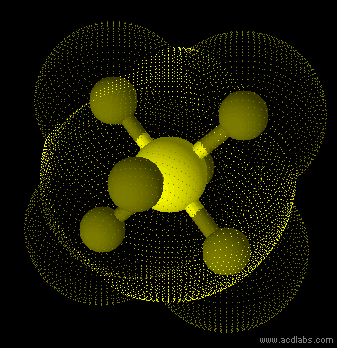

SF6 - sp3d2 - octahedron - non-polar 		PF5
phosphorous pentafluoride

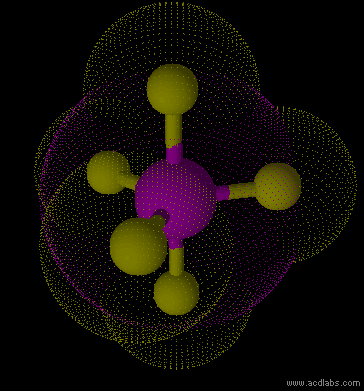

PF5 - sp3d - trigonal bipyramid - non-polar 		SF5Cl
sulfur pentafluoride monochloride

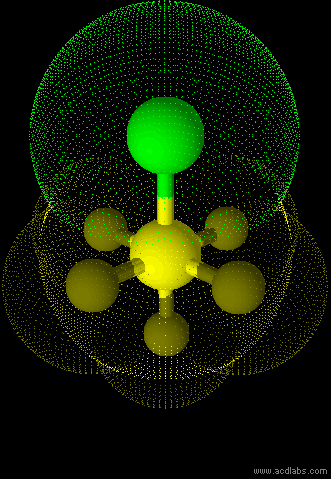

SF5Cl - sp3d2 - octahedral - polar
SF5-ion*
sulfur pentafluoride ion

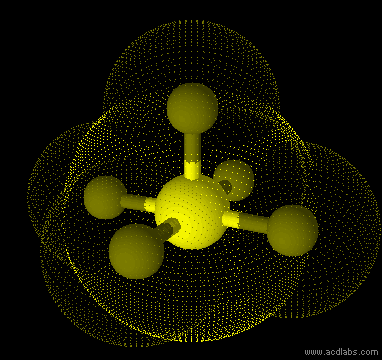

SF5- - sp3d2 - square pyramid - polar 		IF3
iodine trifluoride ion

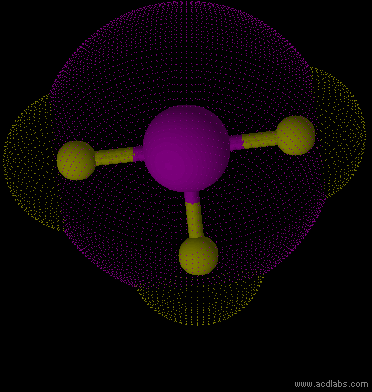

IF3 - sp3d - T-shaped - polar 		SF42-ion*
sulfur tetrafluoride ion
SF42- - sp3d2 - square planar - non-polar

*The van der Waal radius for the neutral molecule is used here for the ions.
